新品公布丨中航光电DY4系列交直流电源连接器为5G助力
交直流电源连接器在通讯行业阐扬着不能或缺的功效，随同着5G技巧的迅速成长，通讯设施功耗大幅加大，对电源连接器通流本领的需要也水涨船高。为满足通讯设施对大电流、防雷击、耐紫内线、防雨淋等多重需要，经过小航的不懈积极，等待已久的DY4系列交直流电源连接器终究问世了!
JONHON has released DY4 series AC/DC power connectors to meet the multiple requirements of communication equipment for higher current, lightning protection, UV resistance, water proof, etc.
产品介绍
Introduction
DY4系列连接器是户外通讯设施通用电源插口。采取三曲卡口方法迅速连接，拥有连接牢靠、操控便利的特征。有交流26A、直流55A等载流版本，不同电流规格产品之间依附多

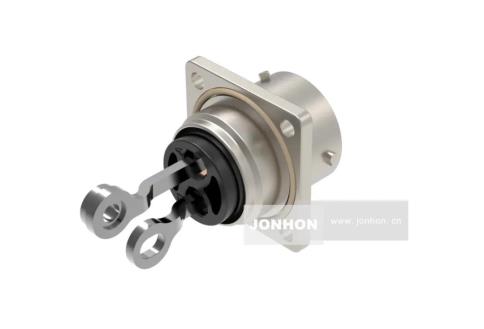

Busbar型插座 Busbar receptacle
额定电流：26A/55A
耐电压：500V DC
工作热度：-40℃～90℃
适配导线：2.5～16mm2
适配电缆外径：Φ6～Φ21.5mm
机器寿命：100 次（头座对插），20次（夹板型碰触件与PCB板）
防护品级：IP67（头座插合）
盐雾品级：720h
雷击：20kA, pulse 8/20μs，±5 times
Rated current: 26A/55A
Withstand voltage: 500V DC
Working temp: -40℃～90℃
Adapter wire: 2.5～16mm2
OD of adapter cable: Φ6～Φ21.5mm

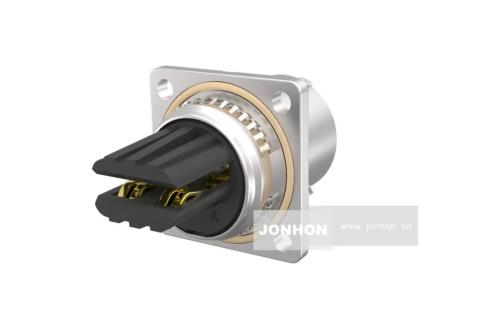

夹板型插座 Splint receptacle
额定电流：26A
耐电压：1500V AC
工作热度：-40℃～90℃
适配导线：2.5～4mm2
适配电缆外径：Φ6～Φ18mm
机器寿命：100 次，20次（夹板型碰触件与PCB板）
防护品级：IP67（头座插合）
盐雾品级：720h
雷击：20kA, pulse 8/20μs，±5 times
Rated current: 26A
Withstand voltage: 1500V AC
Working temp: -40℃～90℃
Adapter wire: 2.5～16mm2
OD of adapter cable: Φ6～Φ18mm
Endurance: 100 cycles, 20 cycles (splint contact and PCB)
IP Degree: IP67 (mated)
Salt spray: 720h
Lightning shock: 20kA, pulse 8/20μs, ±5 times

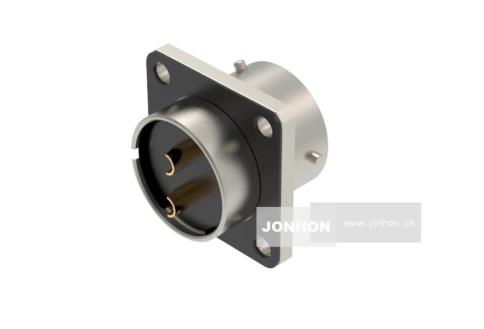

压接型插座 Crimping receptacle

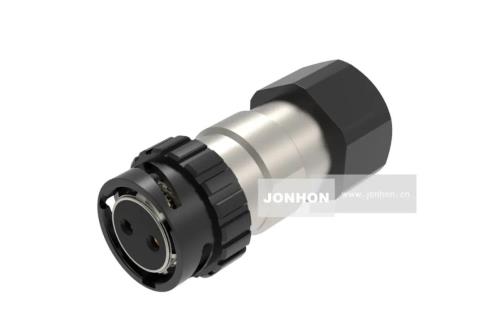

插头 Plug
Endurance: 100 cycles (mated), 20 cycles (splint contact and PCB)
IP Degree: IP67 (mated)
Salt spray: 720h
Lightning shock: 20kA, pulse 8/20μs, ±5 times
▼三芯产品功能指标 Performance of three-core product

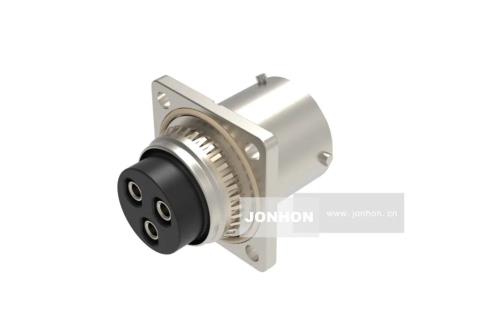

压接型插座 Crimping receptacle

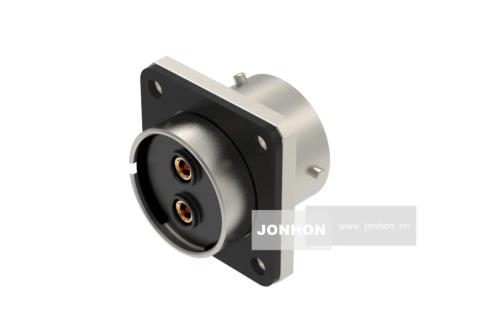

焊接型插座 Welding receptacle
夹板型插座 Splint receptacle

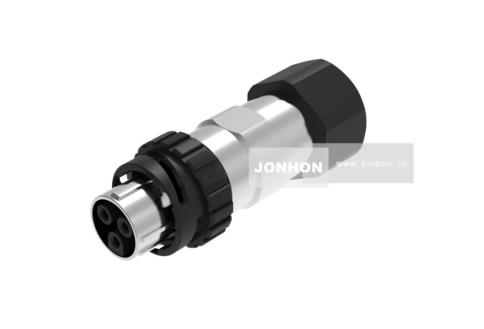

插头 Plug
键位实行防错插。螺钉压紧式接线的插头，追随不同线径的现场做线需要；传统的压接型与焊接型插座可满足常规的工厂内组装需要；“订制化”的夹板型和Busbar型插座，则直接与设施内PCB板连接，节约空间且可满足智能化需要。Universal power interface for outdoor communication equipment. Three-curve bayonet for quick reliable connection and convenient operation.AC 26A and DC 55A current-carrying versions.Multiple key positions for error-proof.Plug with screw compression connection, supports various on-site wiring.Traditional crimping and welding receptacles, conventional assembly.Customized splint and Busbar receptacles, connect PCB directly, save space and automatic.
▼两芯产品功能指标 Performance of two-core product
